Description
●Frame and Structure: Crafted from sturdy carbon steel (Aluminum alloy frame optional)
● Propulsion System: Employs a China made or Crutis AC motor with power options of either 5KW or 6.3KW or 7.5KW
●Control Hub: Operates using a 400A controller
●Battery Choices: Offers the choice between a maintenance-free 48v 150AH lead acid battery or a 48v/72V105AH LiFEPO4 lithium battery
●Charging Capability: Equipped with a versatile AC100-240V charger
●Front Suspension: Features an independent MacPherson suspension design Rear Suspension: Corbel Suspension
●Braking Mechanism: four-wheel disc brake system +electromagnetic parking brake system for secure parking
●Foot Pedals: Integrates sturdy cast aluminum pedals
●Wheel Assembly: Equipped with aluminum alloy rims/wheels in 10 or 12 or 14 inches
●Certified Tires: Comes with road tires that meet DOT certification standards for safety
●Mirror and Illumination: Includes side mirrors with integrated turn signal lights, an interior mirror, and comprehensive LED lighting throughout the product line
●Roof Structure: Features a robust injection-molded roof for added strength
●Windshield Protection:Offers a DOT certified flip windshield for enhanced safety
●Entertainment System: Showcases a 10.1-inch multimedia unit providing speed and mileage data, temperature readings, Bluetooth connectivity, USB playback, Apple CarPlay compatibility, a reverse camera, and a pair of built-in speakers for a complete infotainment experience.

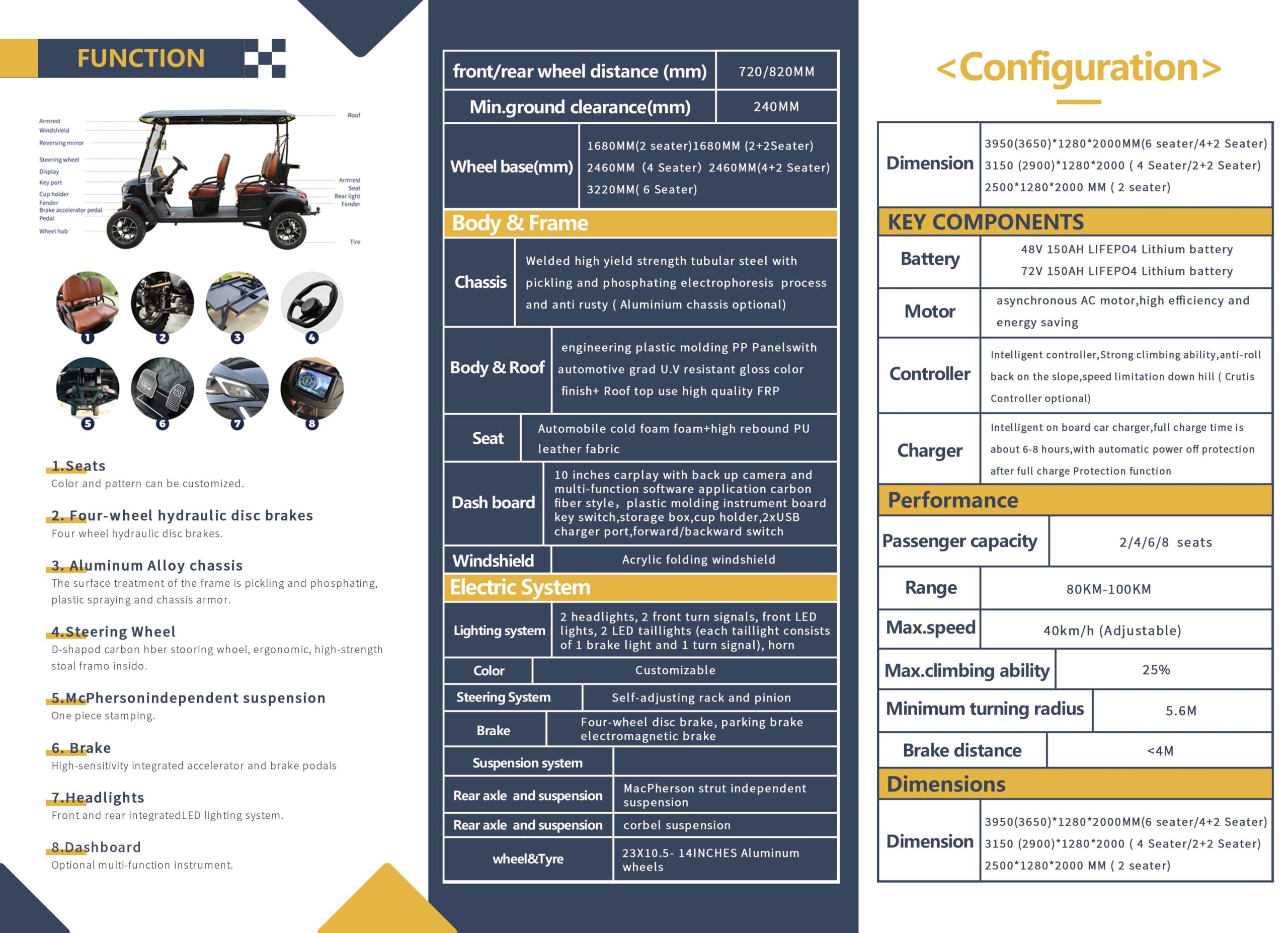

| PARAMETERS | ||||||
| passenger capacity | 2/4/6/8 etc | |||||
| Range (based on top speed) | >70 | |||||
| top speed | 40km/h (Adjustable) | |||||
| Maximum Climbing Degree | 25% | |||||
| SIZES | ||||||
| Vehicle size (mm) | 3650*1280*2000 | |||||
| Minimum ground clearance (mm) | 240 | |||||
| Wheelbase (mm) | 2460 | |||||
| Front wheelbase (mm) | 720 | |||||
| Rear wheelbase (mm) | 820 | |||||
| body | ||||||
| body | PP hard plastic front body + PP hard plastic rear body | |||||
| ceiling | Engineering hard plastic | |||||
| steering wheels | carbon fiber | |||||
| windshield | Foldable | |||||
| ceiling support | there are | |||||
| seat belt | Four-seat two-point seat belts | |||||
| seat | artificial leather | |||||
| (1) Backrest and seat cushion | Waterproof seat cushion | |||||
| (2) Handrail | Black PP hard plastic | |||||
| (3) Bottom shell | PP hard plastic | |||||
| carpet | Anti-slip floor mat | |||||
| dash board |
forward/backward switchBattery capacity display Bluetooth screen mirroring multi-function software application |
|||||
| USB Port | there are | |||||
| Carplay | there are | |||||
| Vin number | there are | |||||
| Coaster | 4 | |||||
| wheel eyebrow | PP hard plastic | |||||
| Electronic control system | ||||||
| Lighting system and speakers | 2 headlights, 2 front turn signals, front LED lights, 2 LED taillights (each taillight consists of 1 brake light and 1 turn signal), horn. | |||||
| reverse alarm | there are | |||||
| Speaker | there are | |||||
| charger | Smart charger | |||||
| driving steering system | ||||||
| vehicle steering system | Self-adjusting rack and pinion | |||||
| Brake system | Four-wheel disc brake + electromagnetic parking brake | |||||
| Suspension System | Front: MacPherson strut independent suspension Rear：corbel suspension | |||||
| tires | 23X10.5- 14INCHES | |||||
