Today we want to bring about information from all corners of the electric golf cart motor category. While they have been around for a long time, recently they are gaining in popularity due to the advancement in battery technology. Electric golf carts can provide more power, for longer periods, with less maintenance compared to their predecessors. Let’s dive in for an overview of electric golf cart motors.
Electric golf cart motors are the heart of an electric golf cart’s propulsion system. These motors convert electrical energy from the batteries into mechanical energy, providing the power to move the golf cart. Understanding how they work can help you appreciate the technology behind electric golf carts, as well as maintain and optimize their performance. Here’s a breakdown:
What Are Electric Golf Cart Motors?
Electric golf cart motors are DC (Direct Current) or AC (Alternating Current) motors that power the movement of the golf cart. They come in two primary types:
-
DC (Direct Current) Motors
-
Most Common in Golf Carts: Historically, DC motors were the most common type used in golf carts. These motors are relatively simple, cost-effective, and provide reliable performance.
-
Voltage: They typically operate at voltages of 36V, 48V, or sometimes 72V, depending on the cart’s design and intended use.
-
Components: A DC motor has brushes that make contact with a commutator (a rotating switch) to create a flow of current through the motor windings. This causes the motor to rotate.
-
-
AC (Alternating Current) Motors ( What Qsen golf cart use)
-
More Efficient and Powerful: AC motors are becoming more popular in modern electric golf carts due to their greater efficiency, better torque, and smoother performance. They also have fewer parts than DC motors, reducing maintenance needs.
-
Voltage: AC motors typically run on 48V systems and are often paired with advanced controllers to manage power delivery more efficiently.
-
How Electric Golf Cart Motors Work
Electric golf cart motors rely on basic principles of electromagnetism. Here’s a step-by-step explanation of how they work:
1. Power Source – The Batteries
-
Electricity Storage: The motor gets its power from batteries, typically deep-cycle lead-acid or lithium-ion batteries. These batteries store electrical energy and release it to the motor when required.
-
Battery Voltage: The voltage of the battery system (36V, 48V, or 72V) determines the power output of the motor.
2. Controller and Throttle
-
Controller: The controller manages the flow of electrical energy from the batteries to the motor based on the throttle input. It adjusts the voltage and current sent to the motor depending on how much power is required (e.g., full throttle vs. idle).
-
Throttle: The throttle is the pedal or lever that the driver uses to control the speed of the cart. Pressing the pedal sends a signal to the controller, which adjusts the power output to the motor.
3. Motor – Conversion of Electrical Energy to Mechanical Energy
-
Magnetic Fields: Inside the motor, the electrical energy flows through windings (coils of wire) on the armature (the rotating part of the motor). When current flows through the coils, it generates magnetic fields that interact with permanent magnets (in the case of a DC motor) or electromagnets (in the case of an AC motor).
-
Rotation: The interaction between the magnetic fields causes the armature to rotate, which in turn drives the wheel axle and makes the cart move.
4. Acceleration and Speed Control
-
Speed Control: By varying the amount of current sent to the motor, the controller can regulate the speed of the golf cart. More current increases the power, which increases the speed of the motor and thus the cart.
-
Torque: When starting from a stop, the motor provides a high torque (rotational force), allowing the golf cart to accelerate smoothly.
5. Regenerative Braking (in Some Models)
-
Regenerative Braking: In certain advanced electric golf carts, regenerative braking is employed. This feature allows the motor to reverse its function when the brakes are applied. Instead of using traditional friction brakes to slow down the cart, the motor acts as a generator, converting the cart’s kinetic energy back into electrical energy and feeding it back into the batteries. This extends the battery life and provides better overall energy efficiency.
Key Components of an Electric Golf Cart Motor System
-
Motor – The primary component that provides the mechanical power to move the cart.
-
Controller – Manages the distribution of power from the batteries to the motor.
-
Batteries – Provide the stored electrical energy that powers the motor.
-
Throttle – The user input device that tells the system how much power to supply to the motor.
-
Regenerative Braking (optional) – Helps to recover energy when slowing down or stopping.

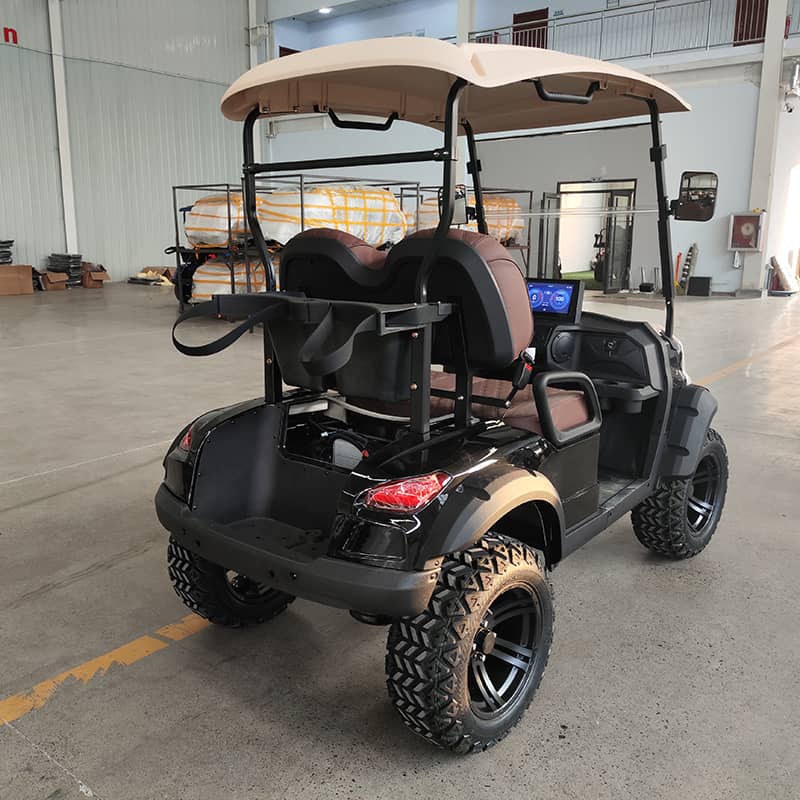

QS-C off road golf cart
