| Model |

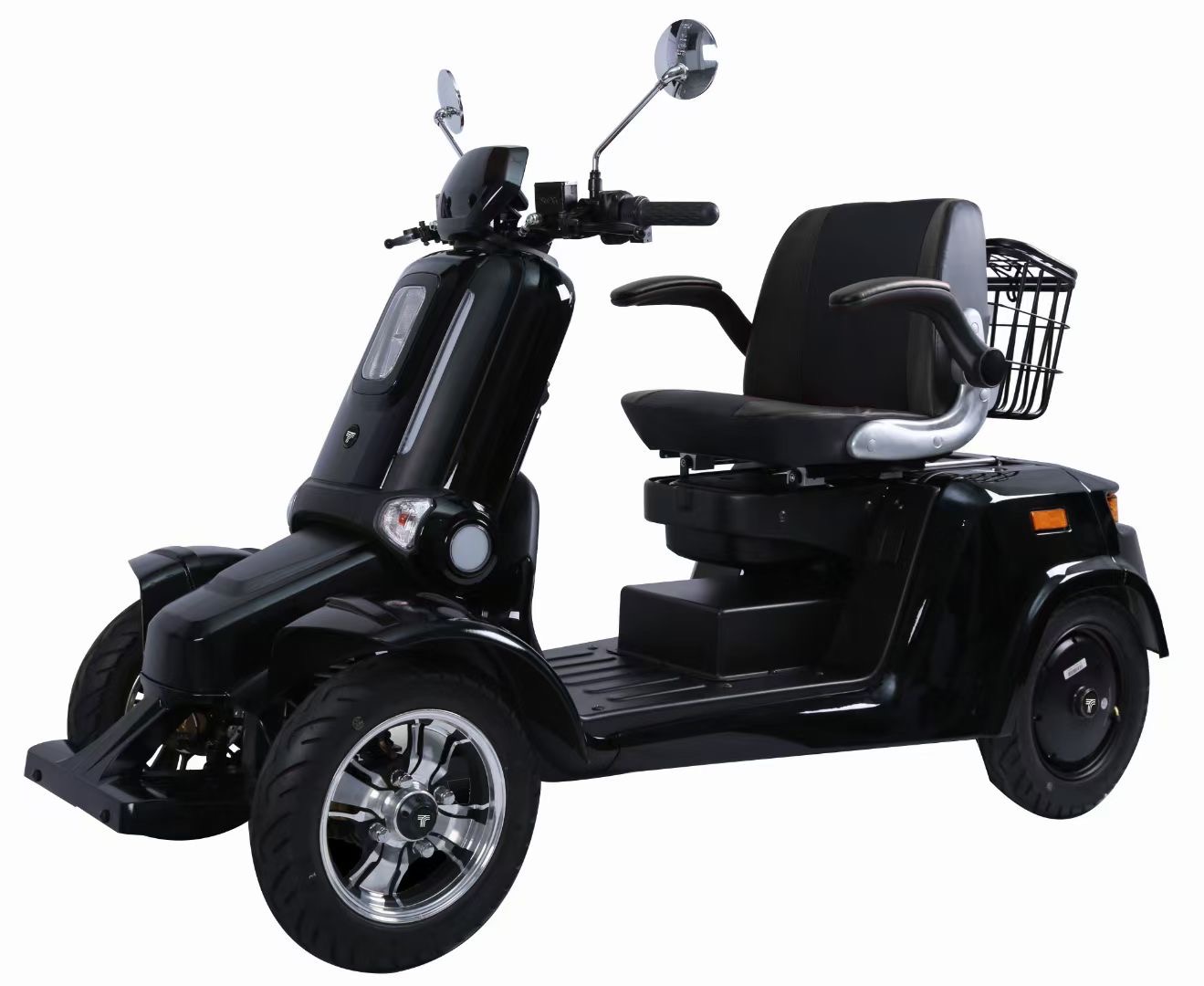

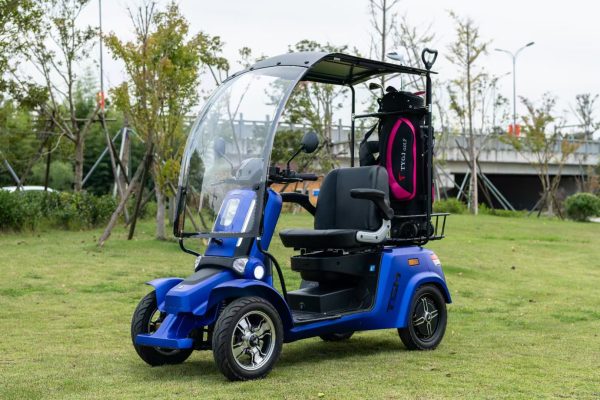

Qsen mini |
| Size specifications |
1935×760×1115 |
| Suspension System |
Front and rear double wishbone independent suspension |
| colors optional |
Red, black, gray, blue, white, etc., customizable |
| The left and right track |
Front 615 Back 630 |
| Voltage |
60V |
| The optional battery type |
Lead-acid/lithium batteries |
| brake mode |
front and rear disc brakes |
| Shock absorber model |
Front and rear external spring damping |
| Max speed |
45km/h |
| Hub |
10*2.15 |
| Transmission mode |
Dual Hub Motor Direct Drive |
| Wheelbase |
1340 |
| The height from the ground |
150 |
| MOtor power |
800W+800W |
| Motor brand |
China 金宇星/全顺 |
| Controller specification |
12-tube 30A + 12-tube 30A |
| Controller brand |
驰丰 |
| Instrument material |
liquid crystal display |
| radio |
/ |
| Charge time |
8H |
| Braking diatance |
<7 |
| The shell material |
ABS+PP plastic |
| Charger specification |
60V3A |
| Mileage |
50km |
| Tire size |
3inches*10inches |
| Tire brand |
Jianda |
| The maximum load |
200kg |
| Climbing degree |
25% |
| Gross weight |
150kg |
| Net weight |
130kg |
| Packing size |
1950×850×850 |
| manner of packing |
Iron frame + cardboard box |
| Loading quantity |
54set（Compression Packaging） |
